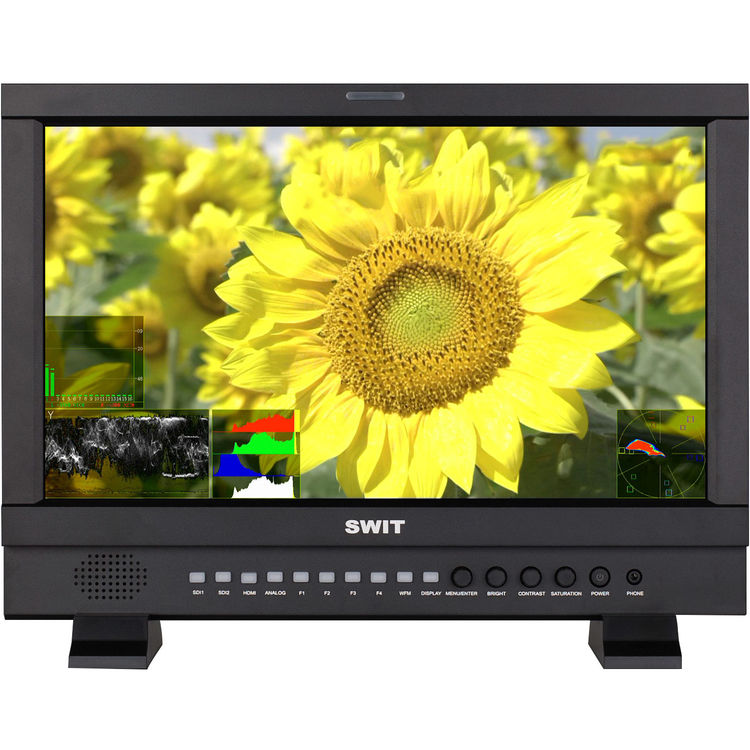

SWIT S-1173 17.3″ Full HD Waveform Studio LCD Monitor Specifications
Performance
Size | 17.3″ / 43.9 cm |
Display Area | 381.89 x 214.8 mm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 (4:3 adjustable) |
Brightness | 300 cd/m² |
Contrast | 700:1 |
Color | 16.77 million colors |
Viewing Angle | Horizontal: 160° Vertical: 160° |

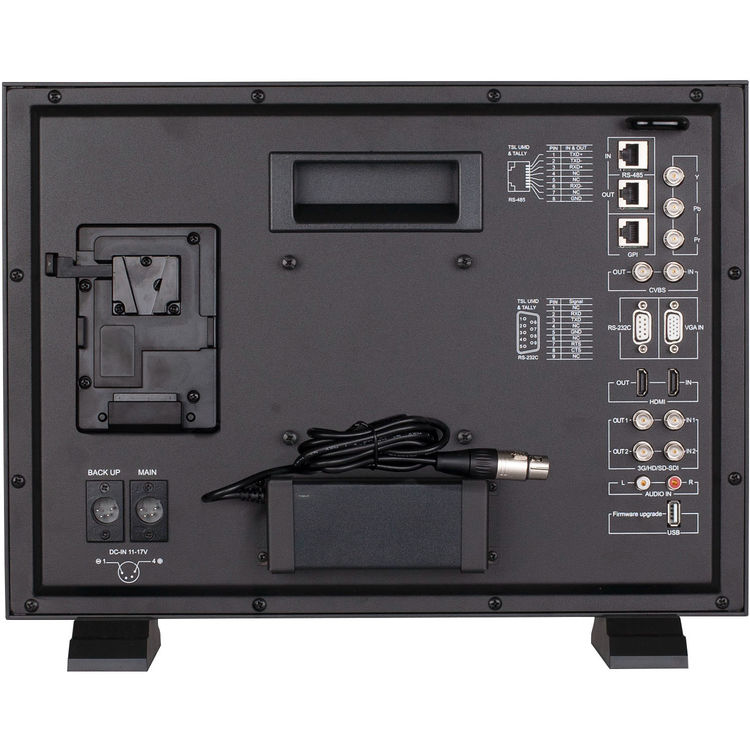

Input / Output
Input | 2 x BNC: 2K/3G/HD/SD-SDI input 1 x BNC: CVBS input 3 x BNC: Y/Pb/Pr input 1 x HDMI: HDMI input 2 x RS-485: 1 x GPI, 1 x UMD 1 x RS-232C: UMD 1 x VGA: VGA input 2 x 3.5 mm RCA: L/R audio input 1 x USB input (firmware upgrade) |
Output | 2 x BNC: 2K/3G/HD/SD-SDI loop output 1 x BNC: CVBS Loop output 1 x HDMI: HDMI loop output 1 x RS-485: UMD 1 x 3.5 mm: SDI, HDMI, embedded audio output, analog audio output |
Video Formats Supported
CVBS | NTSC/PAL |
SDI | SMPTE 2048-1:2011 2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 SMPTE-425M: 1080p: 60/59.94/50 SMPTE-274M: 1080i: 60/59.94/50, 1080p: 30/29.97/25/24/23.98 SMPTE-RP211: 1080psf: 30/29.97/25/24/23.98 SMPTE-296M: 720p: 60/59.94/50 SMPTE-125M: 480i: 59.94 ITU-R BT.656: 576i: 50 |
HDMI | 480i / 576i / 480p / 576p 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 |
Component (Y/Pb/Pr) | 480i / 576i / 480p / 576p 720p: 50/60 1080i: 50/60 1080p: 50/60 |
VGA | 640 x 480 / 800 x 600 / 1024 x 768 / 1152 x 864 / 1280 x 768 |
General
Working Voltage | 100 to 240 VAC DC: 11 to 17 V |
Power Consumption | ≤32 W |
Working Temperature | 32 to 104°F / 0 to 40°C |
Humidity | 10 to 90% |
Storage Temperature | 5 to 150°F / -15 to 60°C |
Storage Humidity | 10 to 90% |
Dimensions | 17.0 x 12.2 x 2.8″ / 430 x 310 x 73 mm |
Weight | 10.3 lb / 4.65 kg |
